Armstrong Whitworth AW38 Whitley air to air

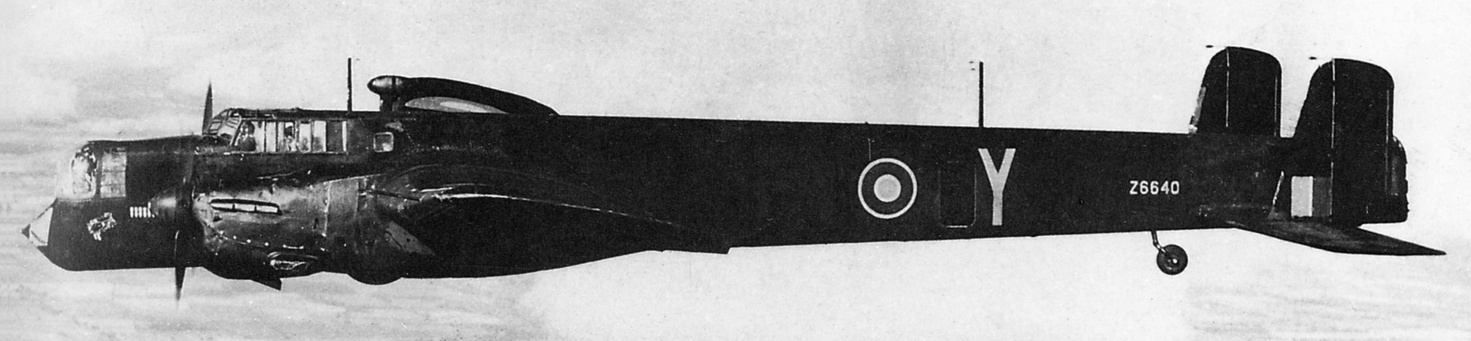

An air to air photograph of an AW38 Whitley showing its characteristic nose-down attitude in flight.

The Armstrong Whitworth Aircraft Company AW38 Whitley was a twin-engined cantilever monoplane with a retractable undercarriage, drawing on the design of the AW23 ‘bomber transport’, particularly in respect of the wing structure.

It showed such initial promise that it was ordered ‘off the drawing board’ with the prototype (K4586) flying for the first time from Baginton Aerodrome on 17th March 1936. Power was initially provided by two Armstrong Siddeley Tiger IX engines with the Mk.II featuring by Armstrong Siddeley Tiger XI supercharged engines.

An initial order for 80 aircraft was placed comprising 40 Whitley Mk.1 and 40 Whitley Mk.II.

After the first 34 aircraft had left the production line (split across the three Armstrong Whitworth Coventry facilities), the uprated supercharged Armstrong Siddeley Tiger VIII engines were fitted as standard on all marks.

The AW38 Whitley was already in service with the RAF at the outbreak of World War II and is probably the most important Armstrong Whitworth design to see operational service.  It participated in the first bombing raid of the conflict in September 1939 and was only superceded in the role by the introduction of the 'heavies' such as the Avro Lancaster.

Armstrong Whitworth AW38 Whitley V N1503
N1503 is an Armstrong Whitworth AW38 Whitley V, the version produced in the greatest numbers.

The AW38 Whitley was used in widespread ‘leaflet raids’ and night bomber operations over Germany during the first half of the Second World War. Later, it also served as a glider tug and took part in delivering Airspeed Horsa gliders during the Battle of Normandy and the D-Day landings.

The AW38 Whitley was also used in support of clandestine operations of the resistance groups in occupied Europe, as well as taking on a maritime reconnaissance role with Coastal Command.

The AW38 Whitley was built in six main variants: Mk.I (with 795 hp Tiger IX engines), Mk.II and Mk.III (with 845 hp supercharged Tiger VIII engines),  Mk.IV (with 1,030 hp Rolls-Royce Merlin IV engines) and Mk.V and Mk.VII (with 1,145 hp Rolls-Royce Merlin X engines).

The most important variant by far was the Mk.V and the Mk.VII, variants built specifically for anti-submarine warfare.  It featured additional fuel capacity, ASV radar and an additional crew member (acting as radar operator). This saw the aircraft all-up-weight progressively increased from 21,660 lb to 33,950 lb.

A total of 1,815 AW38 Whitley aircraft were built, made up of two prototypes and 34 x Mk. I's, 46 x Mk.II's, 80 x Mk.III's, 40 x Mk.IV's, 1,466 x Mk.V's and 146 x Mk.VII's.

Armstrong Whitworth AW38 Whitley VII Coastal Command Z6633
A Coastal Command Armstrong Whitworth AW38 Whitley VII Z6633 showing the array of radar aerials fitted to this Mark.

The AW38 Whitley as a bomber usually carried a five-man crew made up of pilot, navigator, nose gunner / bomb aimer, wireless operator and rear gunner. It took part in many night operations over Germany but  it was gradually withdrawn as more four-engine bombers became available.

The last Bomber Command raid for an AW38 took place in April 1942, although some training aircraft took part in the 1,000 bomber raid on Cologne in May 1942.

Additionally in 1942, British Overseas Airways Corporation (BOAC) are known to have operated a fleet of 15 AW38 Whitley Mk V aircraft which had been converted into cargo freighters and operated at night between Gibraltar and Cyprus.

After what can only be described as an adventurous and varied career, the AW38 Whitley finally retired in 1945.


Specification


  AW38 Whitley Mk.V
Powerplant Two 1,145 hp Rolls-Royce Merlin X engines
Span 84 ft 0 in
All up weight                       33,500 lb
Capacity & Armament 5 crew, one 0.303 machine gun in nose turret, four Browning machine guns in tail turret. Maximum bomb load 7,000 lb (four 1,000 lb bombs in fuselage and three 500 lb bombs per side in wing cells.
Maximum Speed  230 mph at 16,400 ft
Cruising Speed 210 mph at 15,000 ft
Endurance / Range 1,500 miles



Variants and Number built


Prototypes         Two: K4586, K4857
AW Whitley Mk.I
34 built
Powered by 795 hp AS Tiger IX air-cooled radial engines.
AW Whitley Mk.II
46 built
Powered by 920 hp AS Tiger VIII engines.
AW Whitley Mk.III
80 built
Powered by AS Tiger VIII engines, retractable "dustbin" ventral turret fitted aft of the wing root with two .303 in machine guns, hydraulically operated bomb bay doors.
AW Whitley Mk.IV
33 built
Powered by 1,030 hp Rolls-Royce Merlin IV engines, increased fuel capacity.
AW Whitley Mk.IVA
7 built
Powered by 1,145 hp Merlin X engines.
AW Whitley Mk.V
1,466 built
Main production version, manually operated tail and ventral turrets replaced with a Nash & Thompson powered tail turret with four .303 in machine guns.
AW Whitley Mk.VII
146 built
For Coastal Command service with ASV radar fit sixth crew member, with for dorsal radar masts and under-wing antennae.



Survivors


There are no surviving Whitley aircraft.
