De Havilland DH81 Swallow Moth prototype

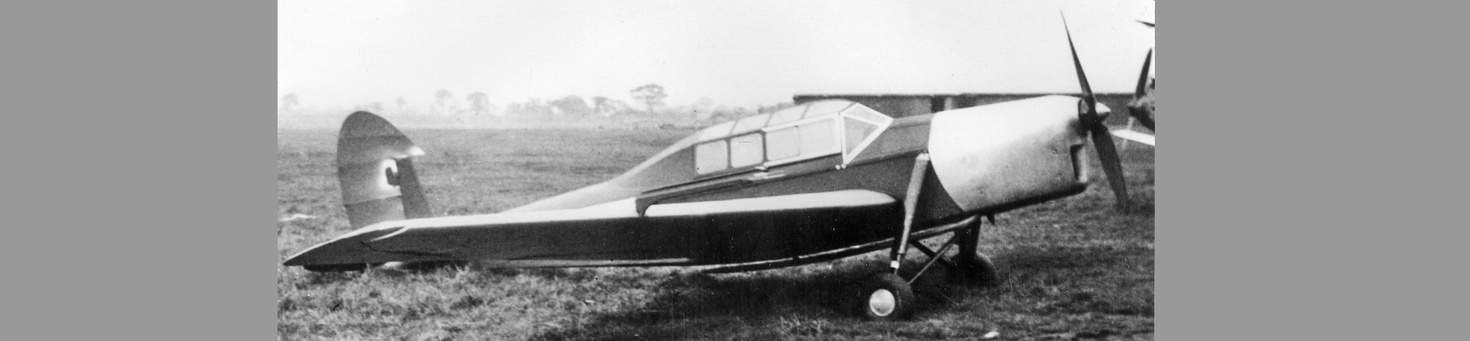

The sole Swallow Moth in its DH81A configuration. This is the only known photograph of the type.
The De Havilland Aircraft Company DH81 Swallow Moth was designed as a small, light-weight and low-power private aircraft, intended as an affordable machine for the private owner.  It was a plywood covered fuselage with a closely cowled engine bay to provide a very sleek appearance.
The DH81 Swallow Moth sat pilot and passenger in open cockpits and featured a tapered, low-set wing with power provided by an 80 hp Gipsy IV inverted engine. It sat on a basic, fixed undercarriage mounted beneath the fuselage with a tailskid fitted at the rear.
Geoffrey de Havilland flew the unregistered, first prototype on 24th August 1931 and during the test flying that followed it demonstrated a maximum achievable speed of 117 mph. A series of significant modifications were introduced to the prototype, which was then re-designated as the DH81A. The most apparent change was the introduction of a one-piece, side-hinged canopy to enclose both occupants.
The wing centre section was increased in thickness and there were also changes to the fin and rudder geometry. These modifications helped increase the maximum speed to 129 mph. The DH81A subsequently flew with class B markings (E-7).
With valuable material resources needed for the production of standard moths, the project was 'set aside' and no production was ever undertaken by the company. The DH81 is regarded as being influential in the subsequent design of the DH94 Moth Minor (also a low wing monoplane of modest power).


Powerplant One 80 hp DH Gipsy IV inverted inline air cooled engine
Span 35 ft 6 in
Maximum Weight 1,330 lb
Capacity  Pilot and passenger
Maximum Speed DH81 117 mph; DH81A 129 mph
Cruising Speed 100 mph



Single unregistered prototype flown as DH81, modified with enclosed cockpit canopy as DH81A E-7.
